Case S14: Dual rotatory magnetron source for web coating

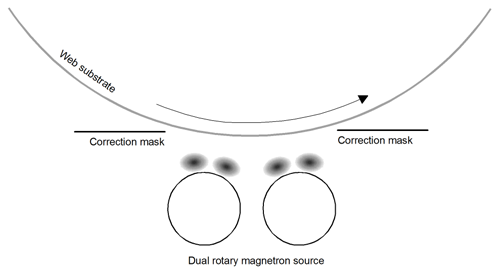

High material utilization and long target life make rotatory cylindrical sources ideal for coating of rolled substrates. Here we consider a process in which two rotatory cylindrical targets are employed to coat a web substrate conformed on a continuously rotating drum.
Get the Most out
of Your Coaters
Hardware requirements
Request a Free Trial
Case Studies with
V-Grade 5 &
V-Grade 5S
© 2018 Tin Model LLC. All rights reserved.
View more cases

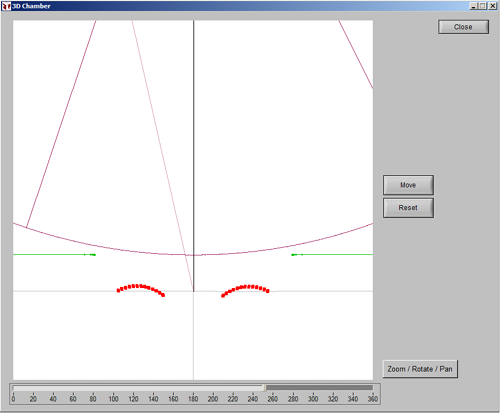

V-Grade 5S 3D chamber view
     Two 120-cm-long cylindrical and rotatory targets, as in Case 13S, are employed here for coating of the 1-meter-wide web substrate. The magnets of the cathodes are rotated by a few degrees towards the drum axis to gain slightly in vapor collection and uniformity.

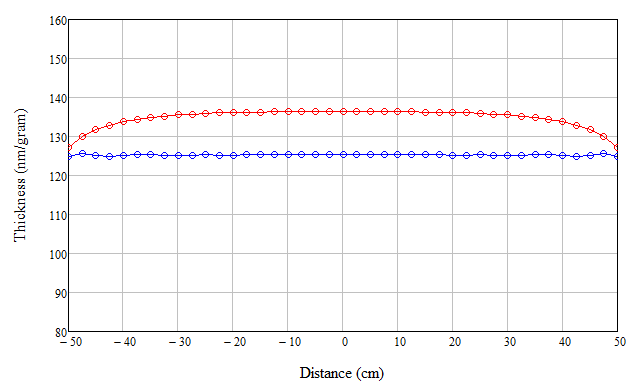

​     Similar to linear motions, the uncorrected thickness distribution across the substrate width exhibits a bow curve, as shown by the red points in the diagram below. The uncorrected distribution has a non-uniformity of +/-3.5%.
     To improve the thickness uniformity, a correction mask pair can be installed. V-Grade 5S allows you to create a mask shape, free hand, in a trial-and-error process to obtain one that suppresses the non-uniformity; for further optimization you can engage the automated mask optimizer (a standard feature of V-Grade 5S). With a mask optimized in V-Grade 5S, the thickness non-uniformity is reduced to +/-0.31%, shown by the blue points in the above diagram.

     With numerical aid, such as V-Grade 5S, in mask design one can achieve excellent thickness uniformity while blocking the least amount of material vapor, which means the lowest material waste and highest deposition rate.
